Aerated Jets FN-5000 Series Foam Effect Nozzles

Design/Application Data:

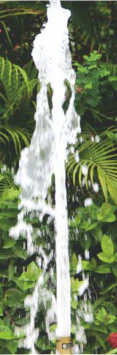

The FN-5000 series Aerated Jet Nozzles are injection Nozzles that are independent on the water level. Because of the injection effect the surrounding Air is sucked in, intensively mixed and thrown high into the Air by the injector jet, Aerating Jet Nozzles are designed to produce columns of highly aerated water with a frothy effected.

Specification Date:

Made from Copper and Brass Pipe with Cast Bronze inlet.

Operating Data:

• Noise : Moderate
• Visibility : Excellent
• Splash/Mist : Low to moderate
• Wind Stability : Good
• Aeration Quality : Good

Model No.	BSP Con.	Dim. A	Jet Orifice		Spray height in meter
					1	1.5	2	3	4	5
FN-5001	1”	148mm	25mm	LPM	40	48	53	-	-	-
				Head in Mtr	4.40	5.80	7.40	-	-	-
FN-5002	1½”	210mm	40mm	LPM	90	110	120	140	-	-
				Head in Mtr	4.40	5.80	7.40	11	-	-
FN-5003	2"	230mm	50mm	LPM	110	130	155	200	230	275
				Head in Mtr	4.40	5.80	7.40	11.0	13.50	16.0
