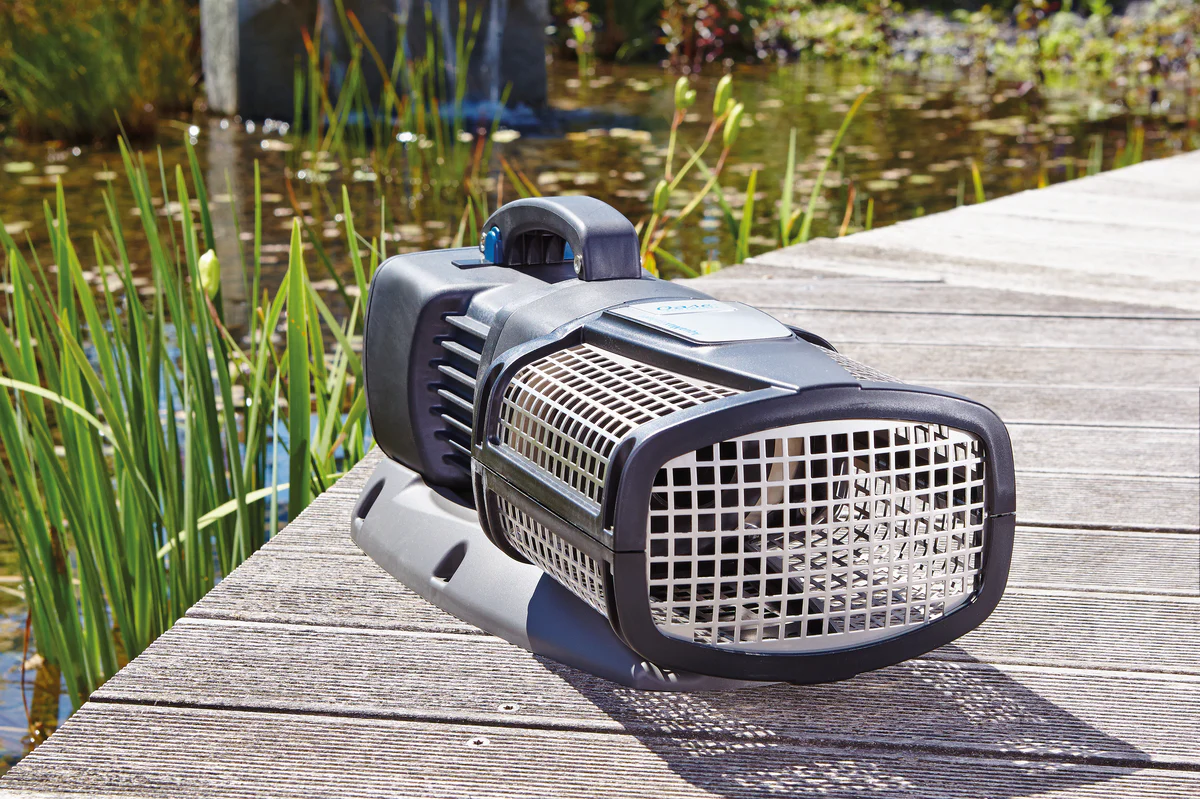

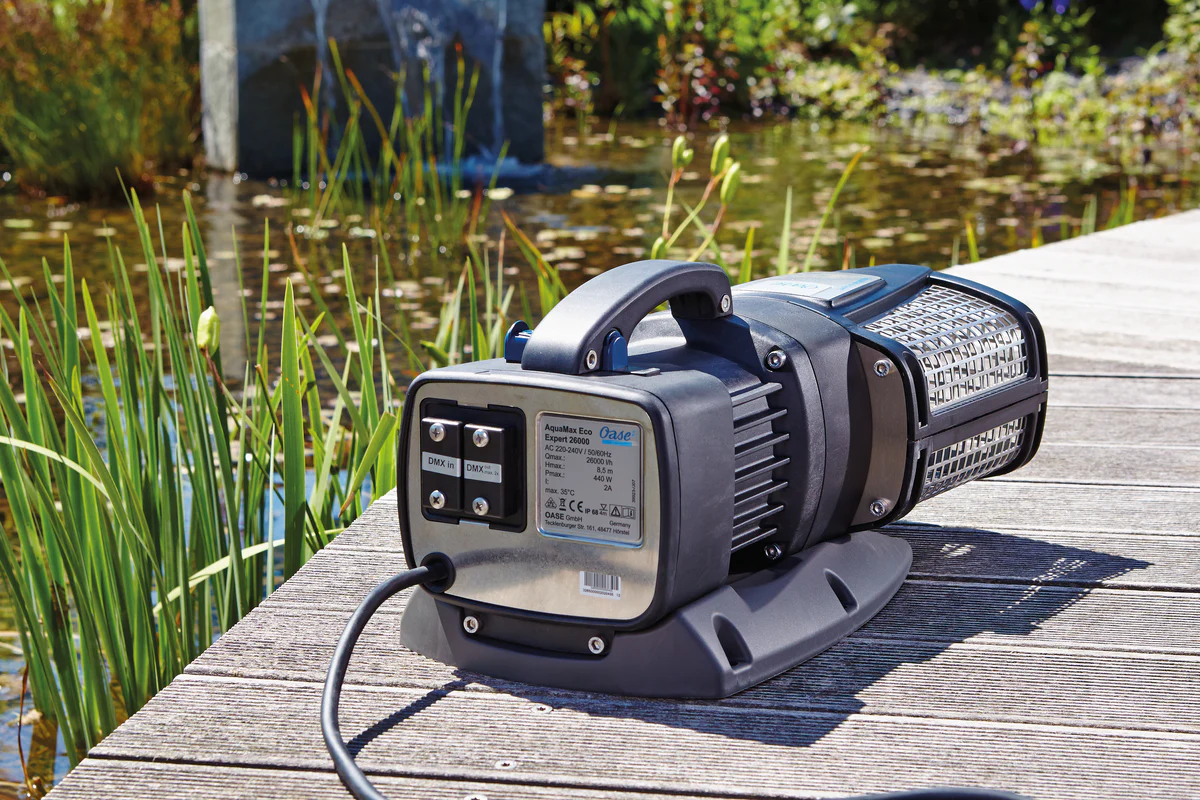

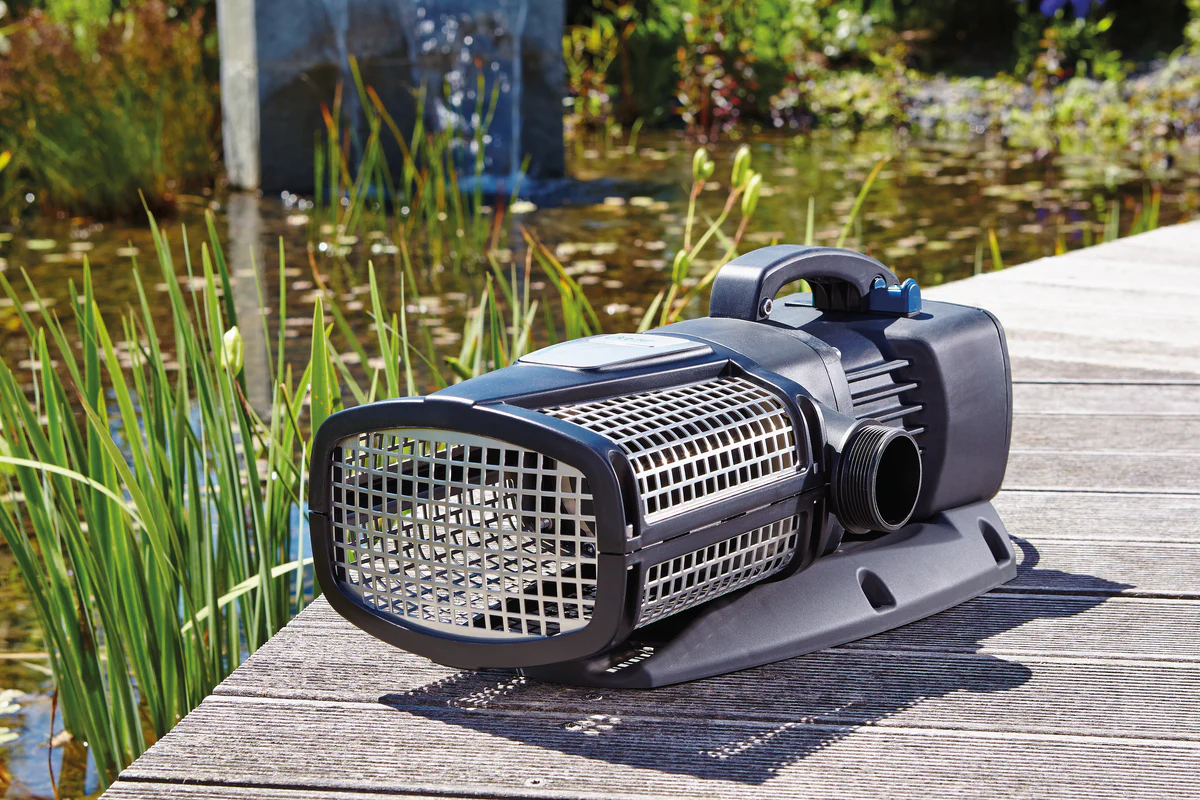

OASE AquaMax Eco Expert 36000
OASE AquaMax Eco Expert 36000
02OD016
The power of a new pump generation: extremely powerful yet economical. A pump that is perfect for use in demanding filter systems or for large watercourses and waterfalls. It offers a very high degree of efficiency and at the same time is excellent at pumping coarse debris up to 11 mm in size. The robust and durable stainless-steel housing contains an exceptionally quiet running pump, which can be installed dry or submerged and can be regulated electronically via Easy Control App. The built-in Seasonal Flow Control (SFC) enables additional energy savings of 30%. It is fully suitable for leaving in the pond during winter and it will still operate at temperatures down to -20°C. The safety benefit: It switches off automatically in the event of dry running or blockage, thus preventing damage to the pump.
Key Features
- Suitable for networks and powerhouse with low energy consumption
- Patented frost protection to –20° C
- With switchable SFC function, enabling an additional 30 % savings in energy costs, depending on the water temperature
Characteristic
- New, energy-efficient pump generation for extremely powerful and economic delivery capacity
- Perfect for use in demanding filter systems or for large watercourses and waterfalls
- Robust and durable stainless-steel housing for stability
- Unique, patented frost protection: the pump will not be damaged at temperatures down to as low as -20° C
- Protection against dry run and blocking through Environmental Function Control (EFC by OASE)
- Can be set up underwater & dry installed
- The pump is unusually quiet in operation; ideal for use in a pump chamber
- Patented »Seasonal Flow Control« for intelligent and environmentally-conscious regulation of flow rate and delivery head
- Using optional accessories, when the SFC function is enabled, an extra 30% can be saved in energy
- MADE IN GERMANY: precise and reliable German engineering skills at a particularly high-quality level
- Excellent efficiency; outstanding handling of coarse debris of particles up to 11 mm in size
TECHNICAL DATA
Dimensions (L x W x H) mm 540 x 250 x 220
Rated voltage 220 - 240 V / 50/60 Hz
Power consumption W 90 - 540
Power cable length m 10.00
Net weight kg 14.90
Guarantee (+ request guarantee) Years 3 + 2
Max. flow rate l/min 600
Max. flow rate l/h 36000
Max. head height, metres m 9.00
Pressure-side connection mm 50
Suction-side connection mm 63
Hose connection mm 38 / 50
Filter intake surface cm² 1120
Max. coarse debris displacement mm 11
Connection EGC Yes
Electronic adjustment Yes
Setup type Can be set up underwater & dry installed
