• Mature, professional technology with more than three years of development time
• Extremely large, protected settlement surface for micro-organisms (806 m²/m³)
• Innovative bypass technology for optimal movement of the Hel-X bio-elements
• Removal of toxins, such as ammonium / ammonia, nitrite and nitrate
• 50 l Hel-X decompose approx. 340 g of fish food per day (can be extended to 75 l / module).

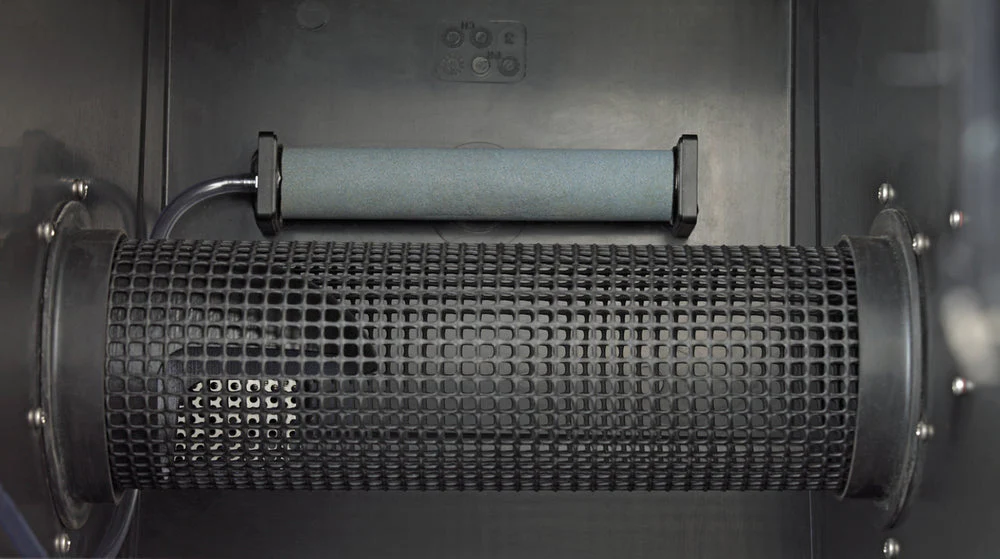

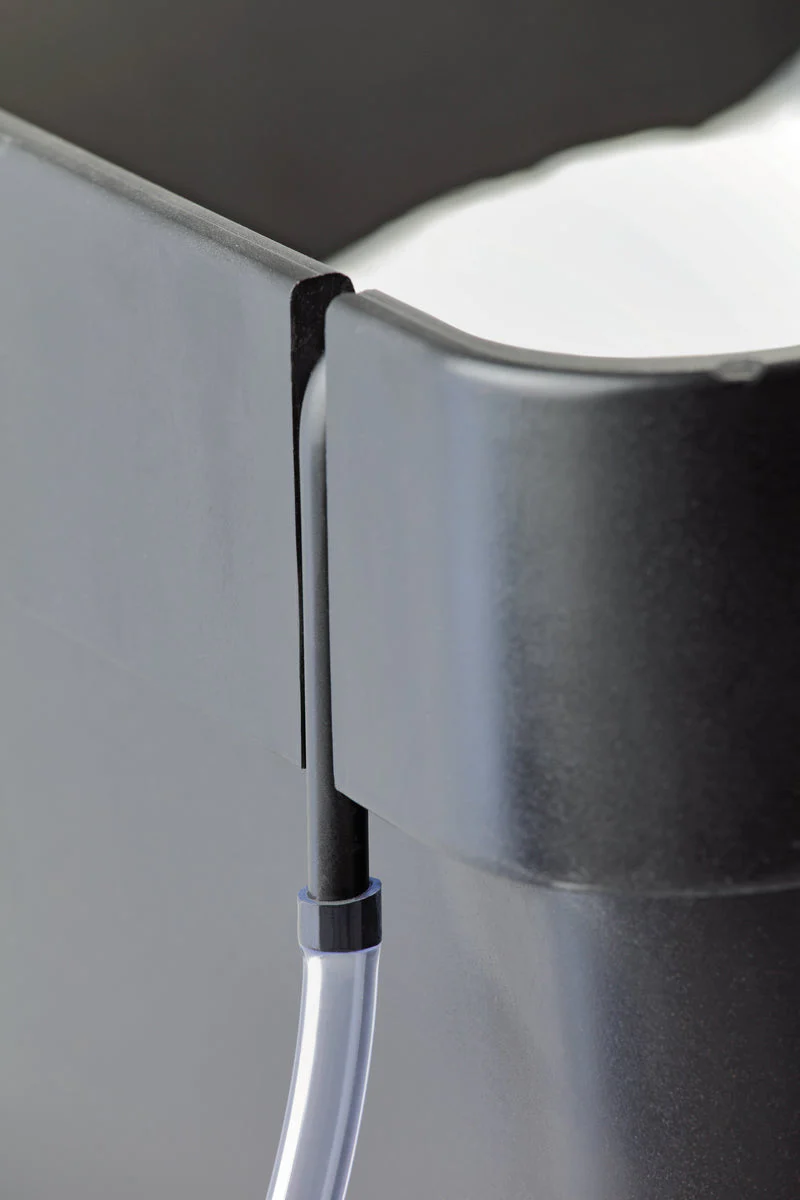

• Aerator bar for oxygen enrichment and turbulence already installed
• Permanent, optimal oxygen supply; self-cleaning effect from dead biomass
• Pulling the slide valve flushes the debris out via a DN 75 discharge
• Highly effective decomposition of pollutants and nutrients thanks to professional filter media in the fluidised bed process innovative and reliable product »Made in Germany«
• Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)

Specifications

Net weight	44.00 kg
Guarantee (+ request guarantee) - years	2 + 1 Years
Biological filter surface – m²	47.8 m²
Protected biological filter surface – m²	40.3 m²
Temperature display	No
Material	GRP Duroplast
Number of inlets – pc.	2 Units
Connection inlet - mm	180 mm
Connection inlet	180 mm
Number of outlets – pc.	2 Units
Connections outlet	DN 150
Connections, sludge discharge	DN 75
Connection to	AquaOxy CWS 2000 - 4800
Min. flow rate - l/h	10000 l/h
Max. flow rate - l/h	33000 l/h
Installation height above water level – cm	11.5 cm

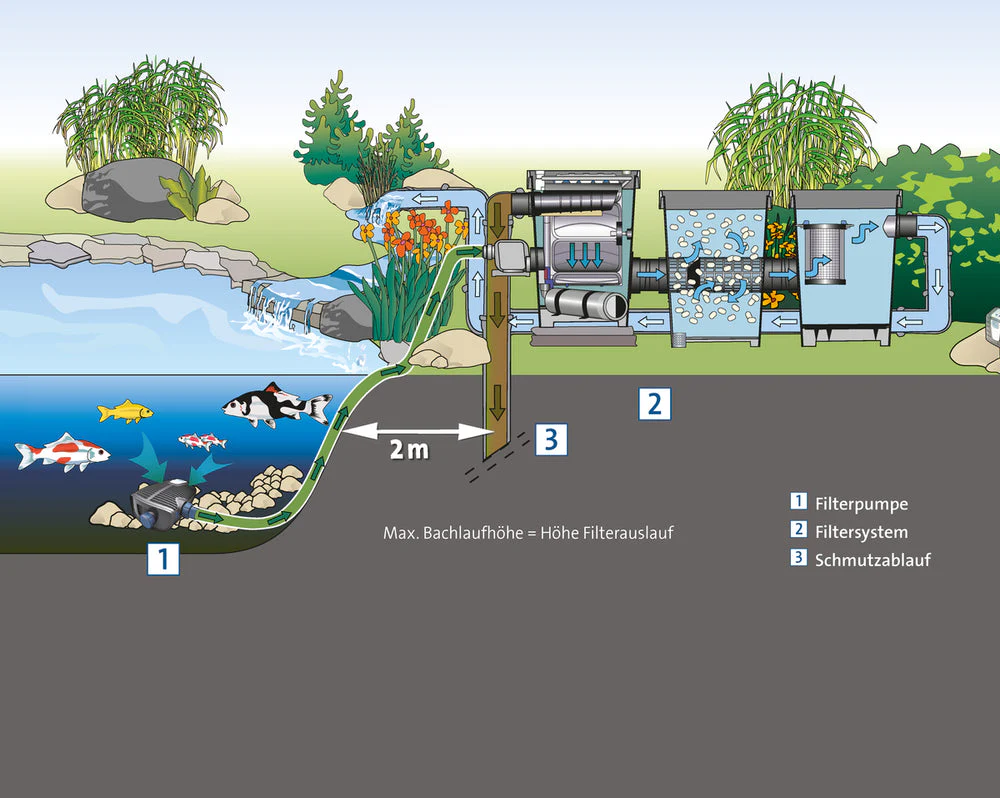

Type of use	Gravity fed system, Pump fed system
Other	Aeration pre-installed incl. 50l Hel-X 13 Biomedia Pollutant discharge incl. slide valve



DOWNLOAD INSTRUCTIONS
