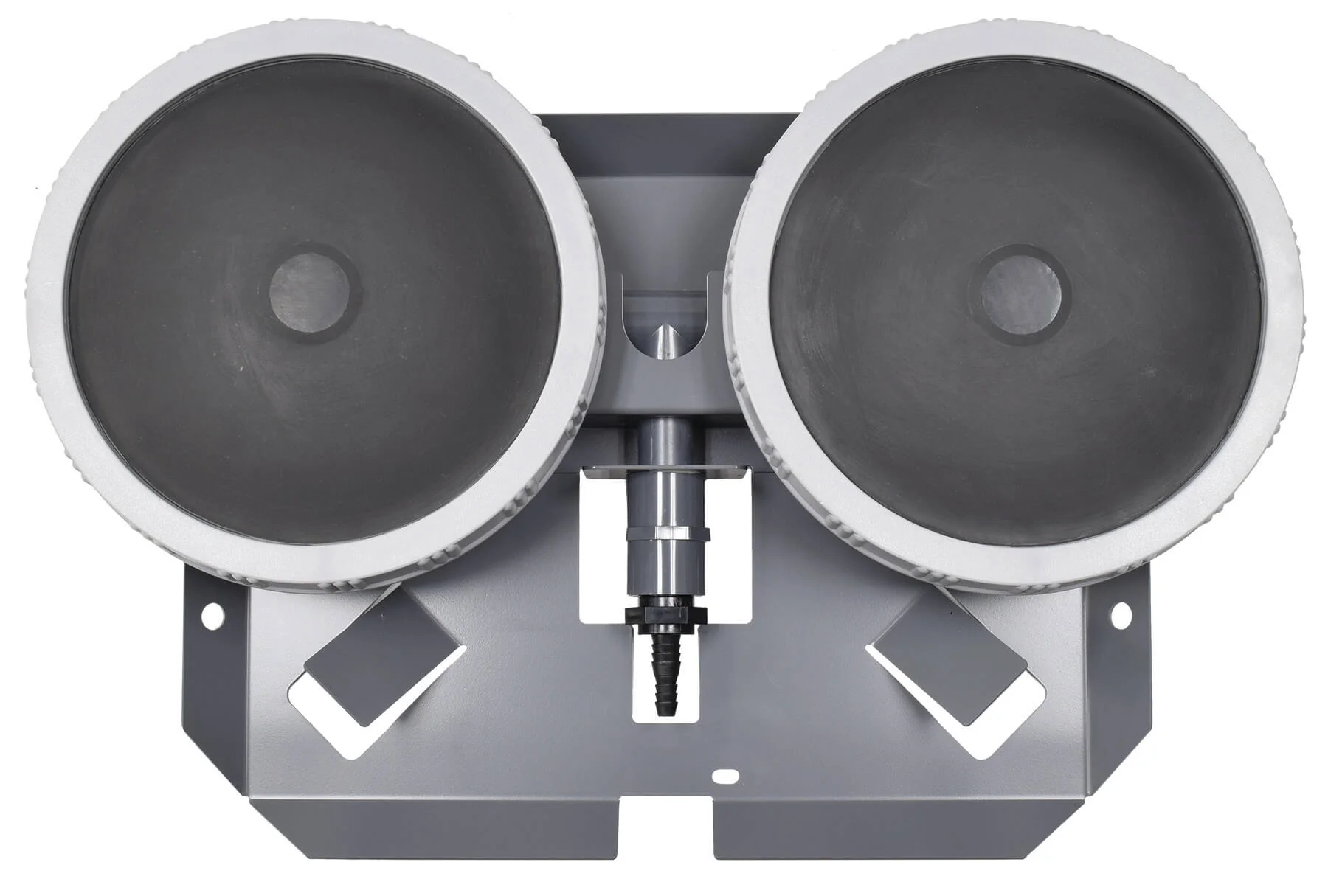

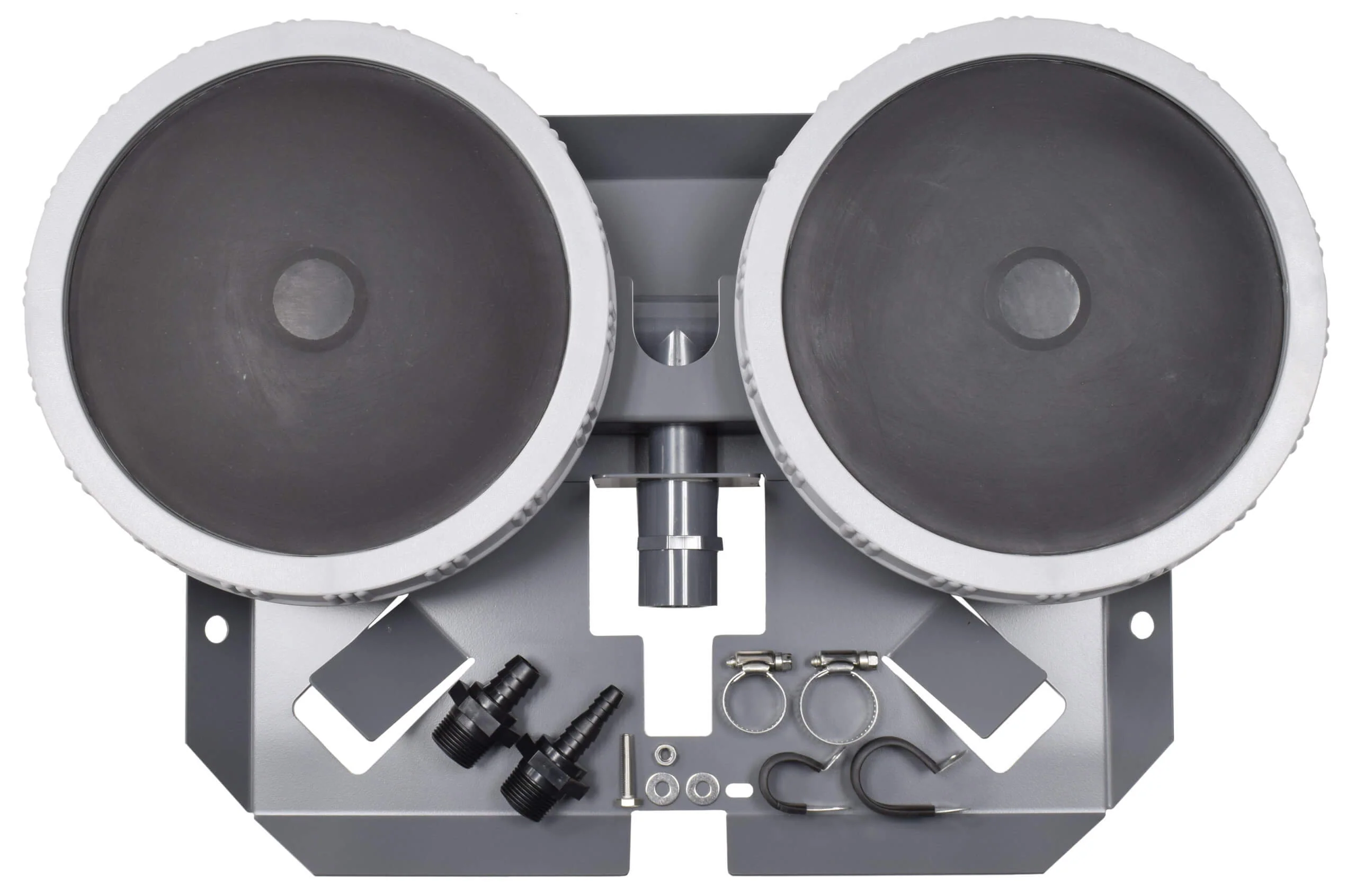

PondMAX SubAir Self Weighted Diffuser Assembly

Available in single and double diffuser.

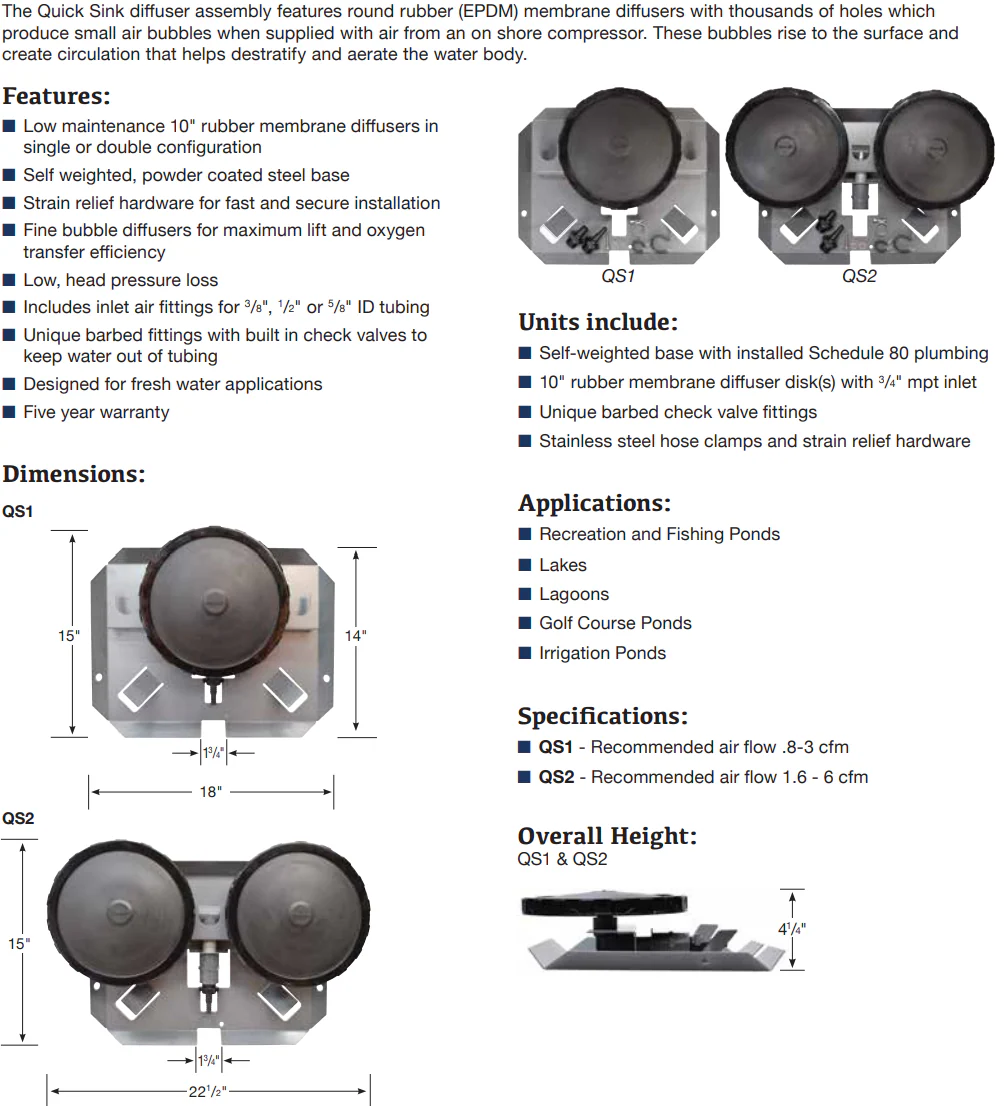

PondMAX SubAir Self Weighted Diffuser assemblies are designed to be placed at the bottom of a pond or lake. The self weighted design eliminates need for gravel and reduces installation time. The Quick Sink diffuser assembly features round rubber (EPDM) membrane diffusers with thousands of holes which produce small air bubbles when supplied with air from an on shore compressor. These bubbles rise to the surface and create circulation that helps destratify and aerate the water body.

Features

• Low maintenance 10" rubber membrane diffusers in single or double configuration
• Self-weighted, powder coated steel base
• Strain relief hardware for fast and secure installation
• Fine bubble diffusers for maximum lift and oxygen transfer efficiency
• Low, head pressure loss
• Includes inlet air fittings for 3/8", 1/2" or 5/8" ID tubing
• Unique barbed fittings with built in check valves to keep water out of tubing
• Designed for fresh water applications
• Five year warranty

Recommended air flow

	L/Minute	L/Hr
Single	23 - 85	1,380 – 5,100
Double	45 – 170	2,700 – 10,200
