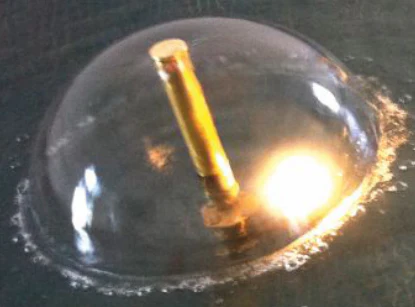

Bell FN-2300 Series Water Film Nozzles

Design/Application Data:

A Clear display of water in the shape of a bell. Minimum sound or splash. For silent wind-free locations in small and medium sized displays. Ideal in grouping of various heights. No constant water level required.

Specification Data:

Brass with adjustable top.

Note: (for Optimum Effects)

• Requires non-turbulent water supply.
• Requires fine screening at pump.
• Ideal for indoor fountain use.

OPERATING DATA:

Sound level        : Good
Visibility             : Good
Splash/Mist        : Low
Wind Stability     : Poor
Aeration Quality : Poor

Model No.	BSP Con.	Dimension			Spray diameter (cm)
		A	B		15 cm	30 cm	45 cm	60 cm
FN-2301	½”	179 mm	56 mm	LPM	16	24
				Head in Mtr	0.70	1.0
FN-2302	1”	360 mm	56 mm	LPM	16	24	30	34
				Head in Mtr	0.70	1.0	1.30	1.60
